DL-4

CO2 JET

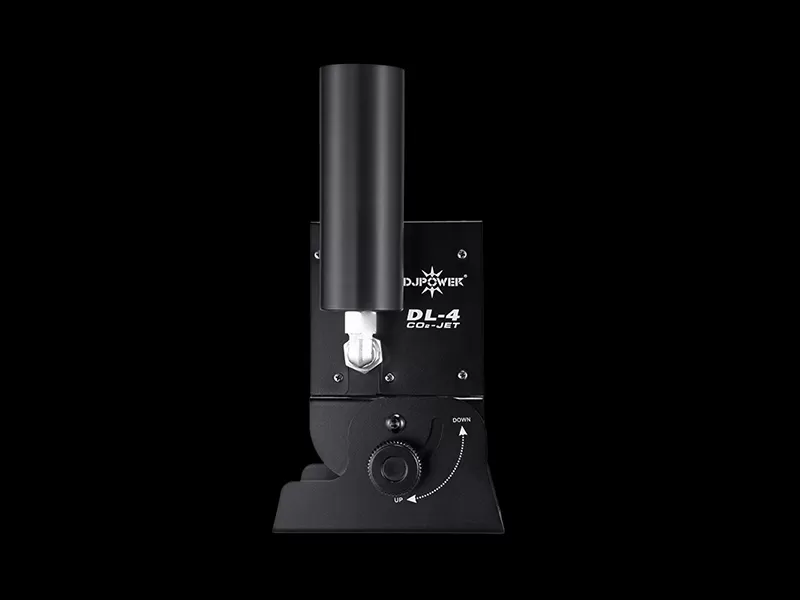

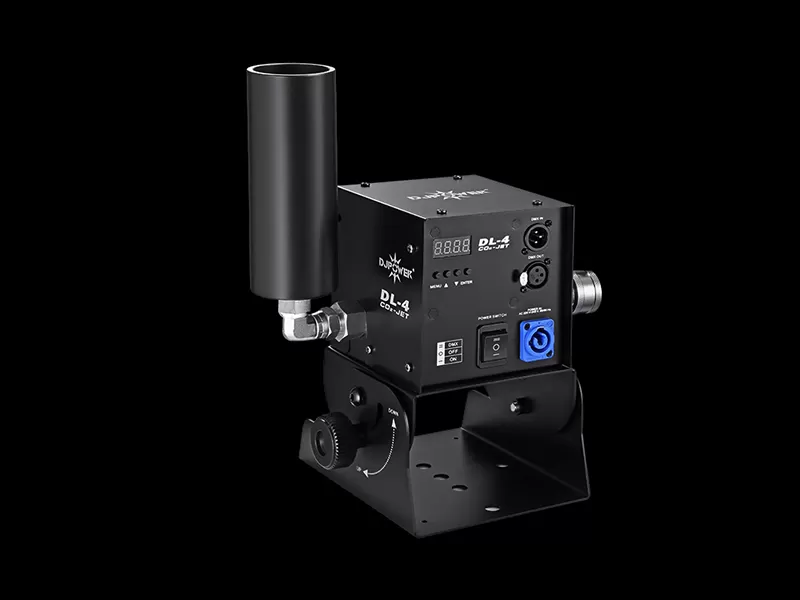

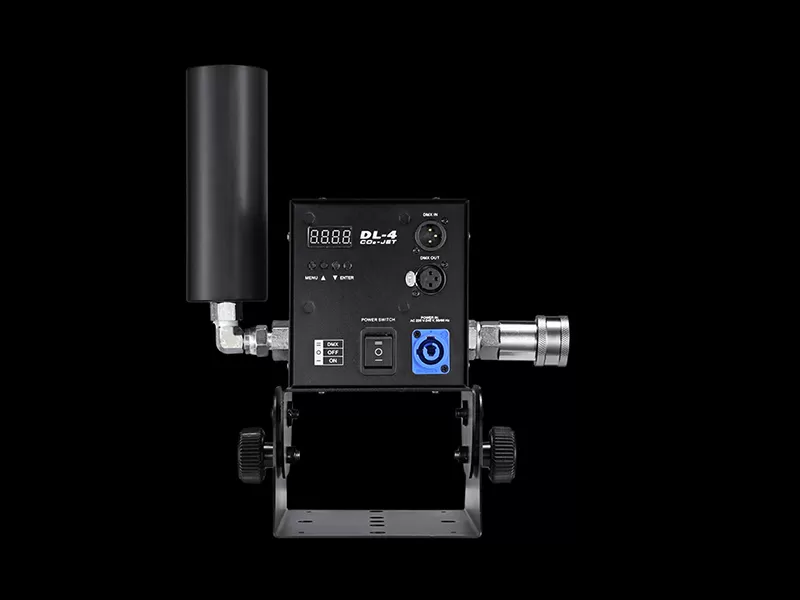

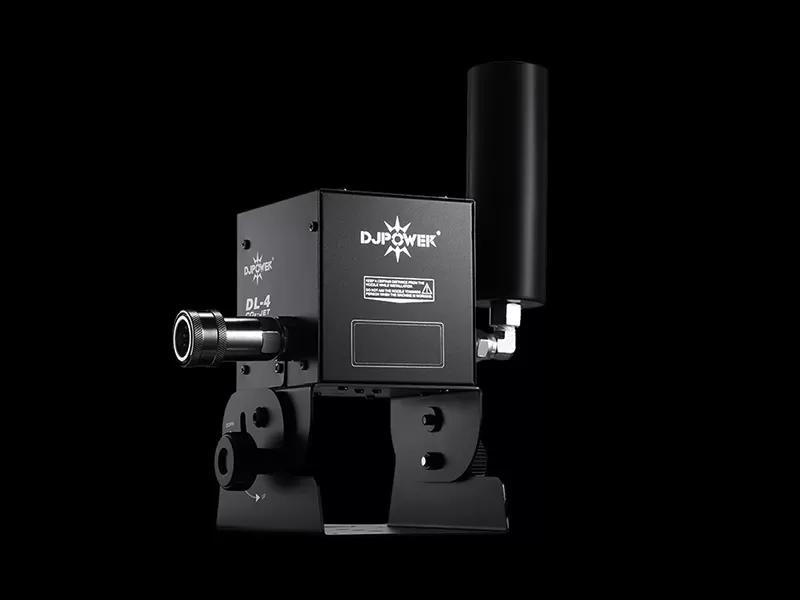

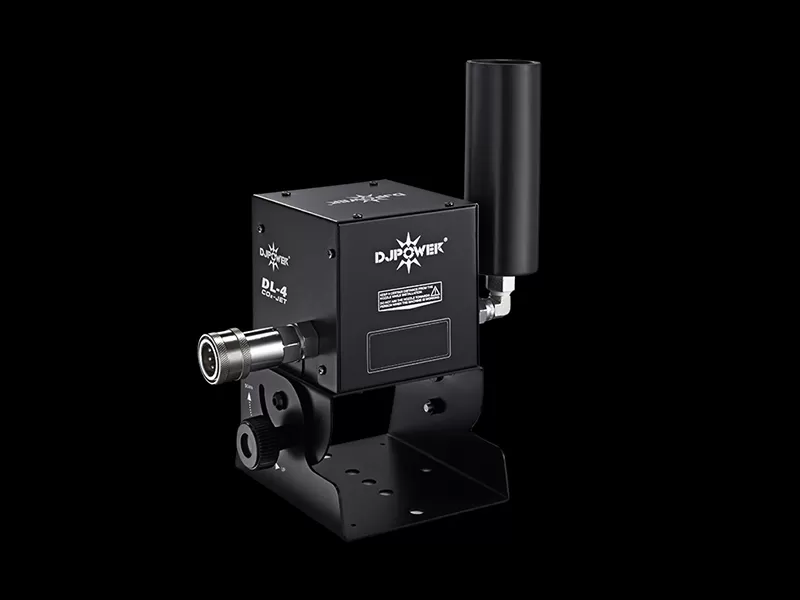

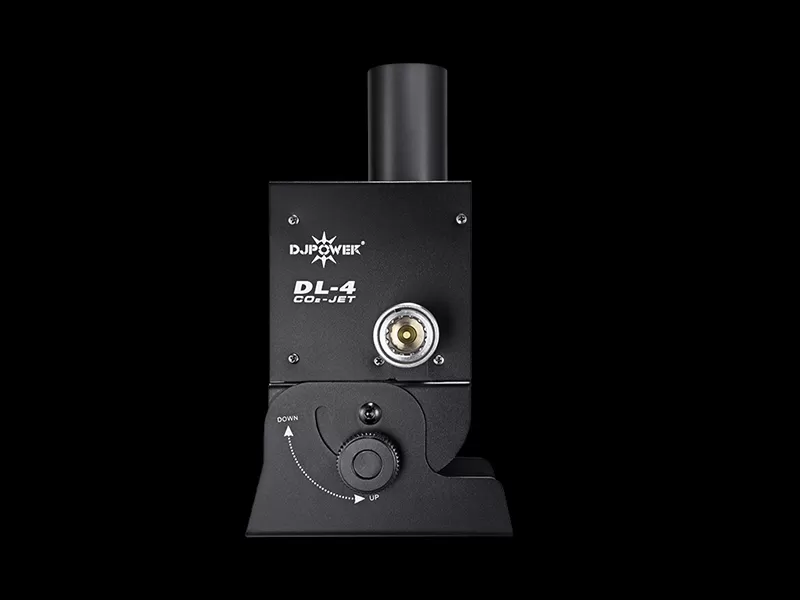

The CO2 Jet is intended to electronically blow white smoke plumes of CO2 from a distance. As soon as the CO2 leaves the cylinder through the CO2 Jet’s secured high-pressure hoses, it converts into gas. This formation of gas is accompanied by a low noise and a solid white plume of smoke will be visible. The length of this plume can reach 8m height. This depends on the air humidity: in case of a high degree of air humidity, the smoke plume will be larger and in case of a low degree of air humidity, it will be smaller.

DL-4



Features

Quality durable magnetic valve;

Stable and strong anti-interference ability;

Small and light weight;

Plastic jet for better effect;

Adjustable output angle within 0°-90°;

Low CO2 consumption;

Anti-loose power plug;

Built-in digital display control and DMX control.




Specifications
AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Fuse (F)

Current Limiter Specifications: 2 A, 250 V

Total Power Consumption: 25 W

Operating Current: 0.1 A

Power Input Connector: Lockable PowerCon

OUTPUT

Adjustable Volume: ×

Max Output Height: Appr. 8 m

CONTROL

On-device Manual Control : 7-seg digital display

Wired Control: ×

Control Protocol: DMX-512

DMX Channel Range: 1

Data Connectors: 3-pin XLR

ACCESSORY

Power Cord: √

Wired Controller Model: ×

CO2 Cylinder: Optional

CONSUMABLE

Consumable: Liquid carbon dioxide

WEIGHT & DIMENSIONS

Net Weight: 4.5 kg / 9.9 lb.

Gross Weight: 4.9 kg / 10.8 lb.

Machine Dimensions: 285 × 170 × 314 mm / 11.2 × 6.7 × 12.4 in.

Packing Dimensions: 335 × 330 × 220 mm / 14 × 13 × 8.7 in.
