Home > Products > Our Brands > X-FORCE > Fan > F-2

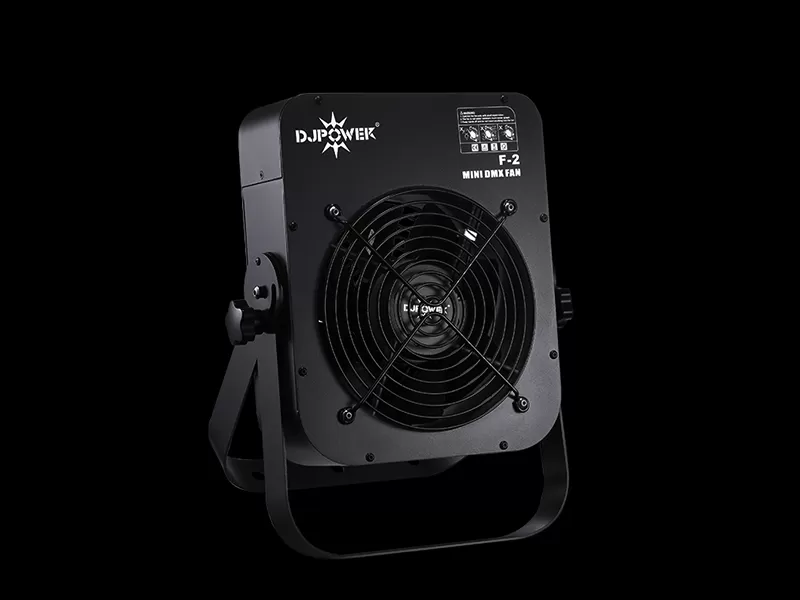

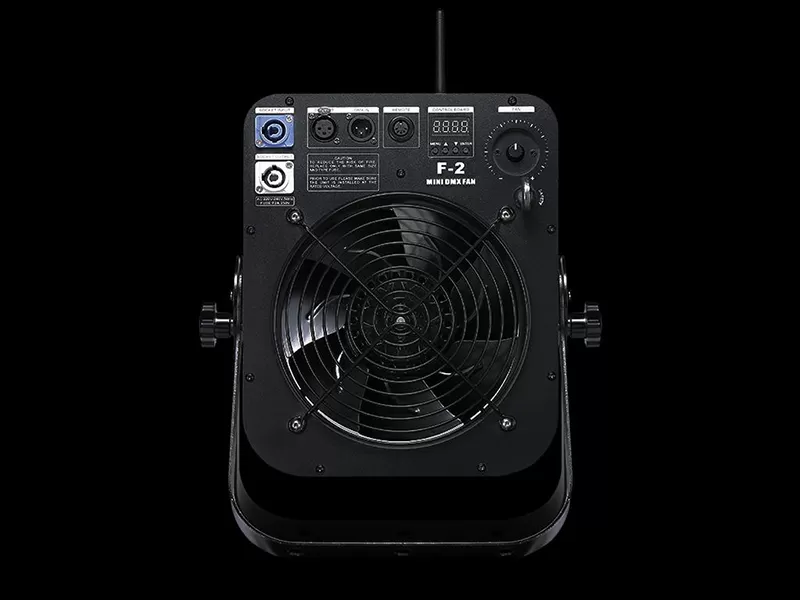

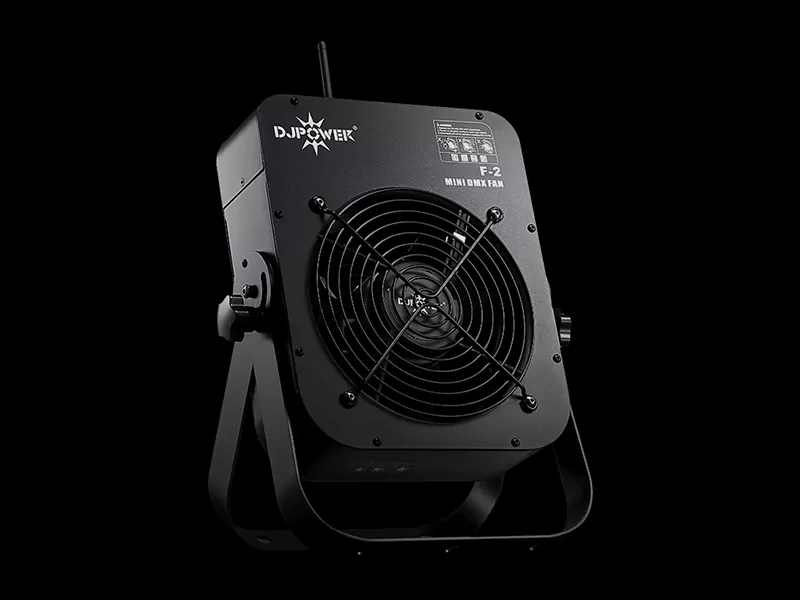

F-2

MINI DMX FAN

F-2 is a mini but all-purpose stage fanfeatures 4 control options, wired control, low power consumption, adjustableblowing directions, durable metal housing and compact size. In addition to thebuilt-in DMX control and the manual knob, wire and wireless controllers areoptional to cope with diverse needs. External antenna provides high-sensitivityremote control.

Total power consumption is merely 60W.The internal bracket enables various output directions within 100 degrees whilehanged or placed on the floor. Solid and handy design allows easy carry andstorage.



Features

High-strength blades and metal shell, strong and durable;

0 to 100% adjustable wind speed.

Hung or placed on the floor.

100° adjustable angle wind outlet;

Anti-loose power plug;

Built-in digital display control, wired control, wireless remote control, and DMX control;

Professional auxiliary appliance, use with snow machine or bubble machine, snow or bubble can be spread further and higher.




Specifications
AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Fuse (F)

Current Limiter Specifications: 2 A, 250 V

Total Power Consumption: 60 W

Operating Current: 0.3 A

Power Input Connector: Lockable PowerCon

Power Output Connector (Daisy Chained): Lockable PowerCon

FAN

Type: AC Centrifugal Blower

Quantity: 1 pc

Input Voltage: 230 V

Power Consumption of Each Unit: 60 W

Total Power Consumption: 60 W

Ouput Adjustable: √

Adjustment Range: 0-100

OUTPUT

Adjustable Volume: √

Volume Adjustment Level/Range: 0-100

Maximum Continuous Duration @ full volume: unlimited

Continuous Output : √

Max Continuous Output Level: 100%

FEATURES

Physical Thermostat: ×

Electronic Thermo-Control: √

Adjustable Output : √

Adjustable Fan Speed: √

No-Fluid Protection: ×

CONTROL

On-device Manual Control : 7-seg digital display & Knob(s)

Wireless Control: W-5 / RF 433MHz / Built-in

Wired Control: FK-1

Control Protocol: DMX-512

DMX Channel Range: 1

Data Connectors: 3-pin XLR

ACCESSORY

Power Cord: √

Wireless Controller Model: W-5 / RF 433MHz / Transmitter

Wired Controller Model: FK-1

WEIGHT & DIMENSIONS

Net Weight: 6.5 kg

Gross Weight: 7.4 kg

Machine Dimensions: 330 × 103.1 × 388 mm

Packing Dimensions: 375 × 175 × 455 mm
