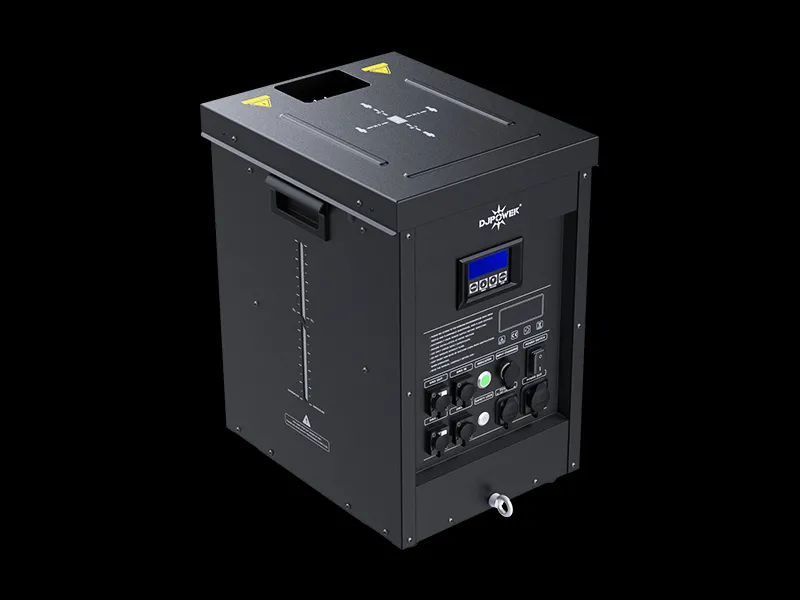

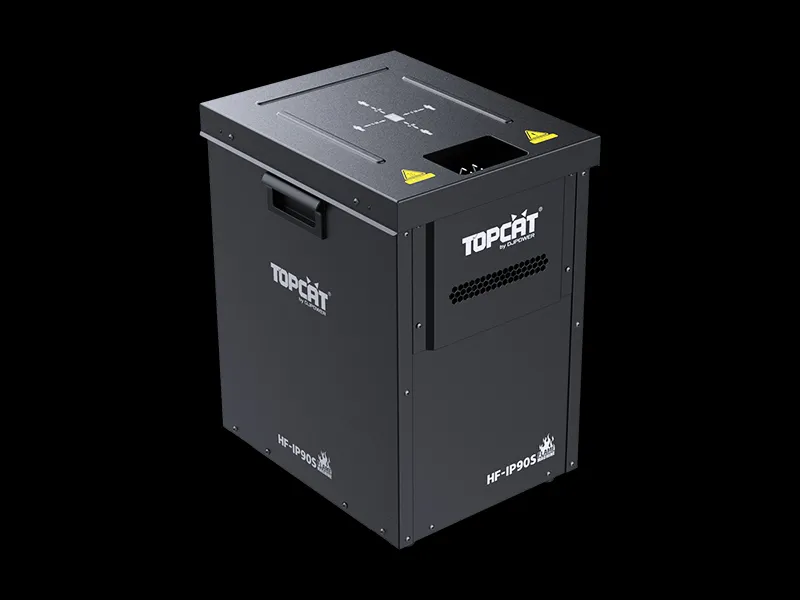

HF-IP90S

HF-IP90S is DJPOWER's newly upgraded vertical flame machine. This model retains the original stainless steel casing, dual ignition, and powerful burst, while greatly improving the IP rating to IP54 and increasing fuel capacity with a 10L fluid tank. It is suitable for all kinds of shows to create excellent atmosphere.

HF-IP90S USER MANUAL

INQUIRE NOW

Features

• Upgraded IP54 waterproof rating;

• Stainless steel casing with reinforced, rust-resistant sheet metal for long-lasting durability;

• Dual ignition ensures successful ignition；

• High-speed, high-precision drive and control system for rapid and accurate flame ignition.

• Intelligent electronic control system with pressure monitoring, safety alerts, and fault alarms.;

• Fluid tank is expanded to 10L, doubling runtime;

• Full set of SEETRONIC rainproof power connectors;

• LCD control, 3-pin and 5-pin DMX control;

• Safety lock and 12V battery support ensure equipment safety and scene adaptability.

Note: The actual effect may be affected by the use environment.

Specifications

AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz
Total Power Consumption: 450 W

IP RATE

Waterproof rate：IP54

CAPACITY

Tank Capacity: 10 L

OUTPUT

Adjustable Output Angle: ×
Max Output Height: Appr. 8-10 m (no wind)
Fluid Consumption Rate: Appr. 0.3 min/L
Consumable: Isopropyl alcohol, Bio-Ethanol, Isopar-G

FEATURES

Physical Thermostat: ×
Electronic Thermo-Control: ×
Adjustable Output : ×
No-fluid Monitoring: √
Safety Warning: √
Failure Warning: √

CONTROL

On-device Manual Control : LCD control board
Wireless Control: ×
Wired Control: √
Control Protocol: DMX-512
DMX Channel Range: 2 or 6

ACCESSORY

Power Cord: √
Wireless Controller Model: ×

CONSUMABLE

Consumable: ISOPAR-G ( isopropanol or bio-ethanol is optional only under special request, please consult sales manager firstly)

WEIGHT & DIMENSIONS

Net Weight: 23.6 kg
Gross Weight: 27 kg
Machine Dimensions: 416.7 × 314.3 × 473.3 mm
Packing Dimensions: 520 × 440 × 580 mm
