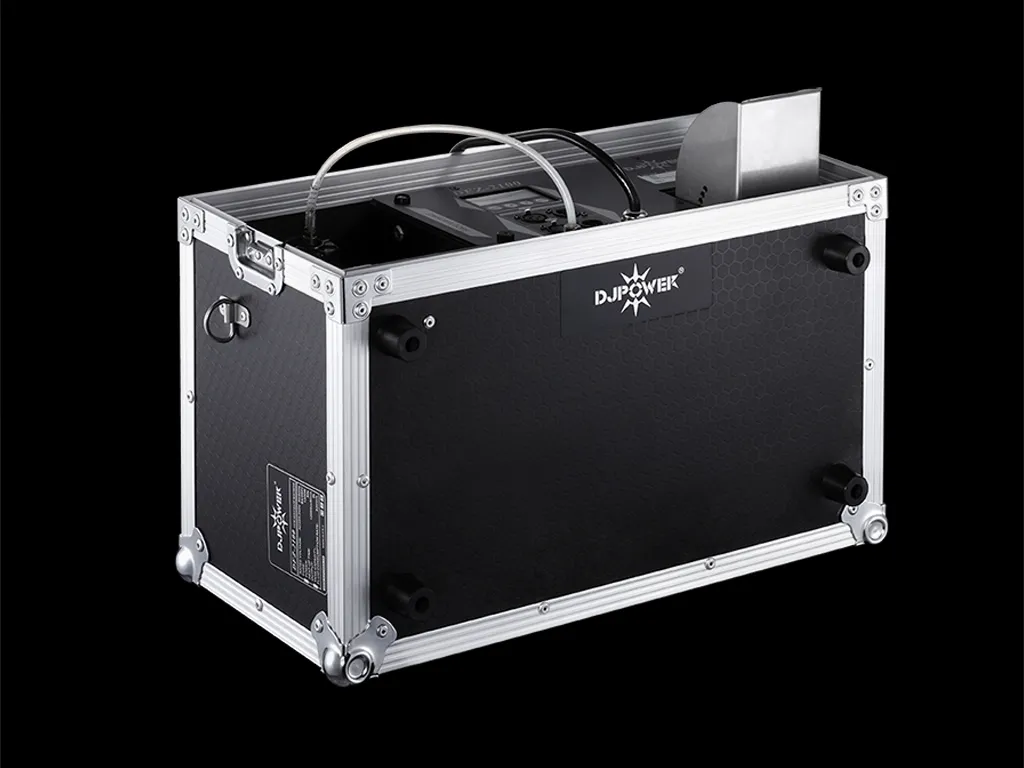

DFZ-2100 is a top of the range water-based haze machine designed for the professional market. It has strengthened its performance than its predecessor, comes built-in flight case and can be stacked one on another. DFZ-2100 haze machine features a unique heating system which enables to produce continuous even haze, free from clogging, reduce maintenance and extend product life. Operating at low noise levels makes it an ideal choice for noise-sensitive environments, including theaters, stages, studios and high-end bars.
The built-in flight case, stackable housing and adjustable haze outlet make the DFZ-2100 Water Based Haze Machine suitable for both touring use and permanent venue installations.
Haze volume and fan speed can be controlled independently, allowing technicians to adjust both atmospheric density and haze distribution. Consult the DFZ-2100 user manual for the DMX channel map, operating procedures and recommended setup distances.
Continuous output, even and light haze;
12,000cfm output, 0-100% precisely adjustable;
Nozzle free from fluid squirting;
Independent variable haze and fan control;
Powerful fan with low noise;
Low fluid consumption;
New heating system only 50 seconds heat-up time;
Advanced No-Fluid protection;
Patented long-life heating system;
Angle-adjustable haze outlet;
Anti-slip fluid tank;
Anti-leaking fluid system with quick-connect fittings;
Built-in LCD control, 3-pin and 5-pin DMX control;
Water-based fluid, no burnt odor, no harm to the optic;
Please use DJPOWER professional haze fluid PRO-C or PRO-J.
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 8 A, 250 V
Total Power Consumption: 1,200 W
Operating Current: 5.2 A
Power Input Connector: Hard-wired
Heat Up Time: Appr. 50 s
Heater Type: Fast Coil Heater
Fluid Tank Capacity: 5 L
Adjustable Volume: √
Volume Adjustment Level/Range: 1-100%
Max Output Volume: Appr. 12,000 cuft/min
Fluid Consumption @ full volume: Appr. 83 min/L
Maximum Continuous Duration @ full volume: Unlimited
Continuous Output: √
Max Continuous Output Level: 100%
Fully-loaded Cumulative Output Duration @ full volume: Appr. 416 min
Consumable Type for Standard Output Test: PRO-C/PRO-J
Physical Thermostat: ×
Electronic Thermo-Control: √
Adjustable Output: √
Adjustable Fan Speed: √
No-Fluid Protection: √
On-device Manual Control: LCD control board
Wireless Control: ×
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 2
Data Connectors: 3- and 5-pin XLR
Flight Case: √
Power Cord: √
Wireless Controller Model: ×
Wired Controller Model: ×
Consumable: PRO-C or PRO-J Haze Fluid
Net Weight: 17.8 kg
Gross Weight: 19.8 kg
Machine Dimensions: 530.8 × 409.8 × 276.4 mm
Packing Dimensions: 590 × 475 × 335 mm
◆ Theaters and performance venues: Low-noise operation and precise output control help maintain atmosphere without distracting performers or audiences.
◆ Concerts and live stages: Continuous 12,000 cu ft/min output supports sustained beam and laser visibility.
◆ TV and video studios: Fine, adjustable haze helps create consistent lighting depth for camera production.
◆ Clubs and entertainment venues: The 5 L tank and efficient fluid consumption support extended operating periods.
◆ Rental and touring companies: Built-in flight case, stackable housing and DMX control simplify transport and show integration.
◆ Corporate and event productions: Fast heat-up and adjustable haze direction allow quicker setup for temporary venues.
