H-3
H-3
H-3
H-3

H-3

PRO HAZE MACHINE

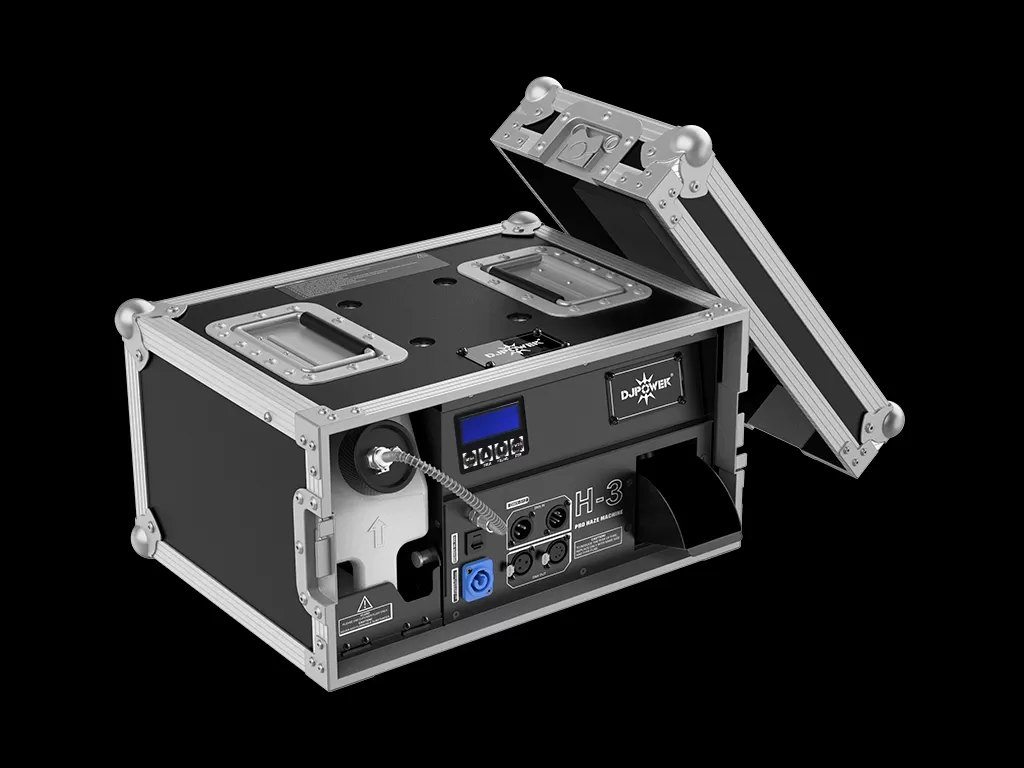

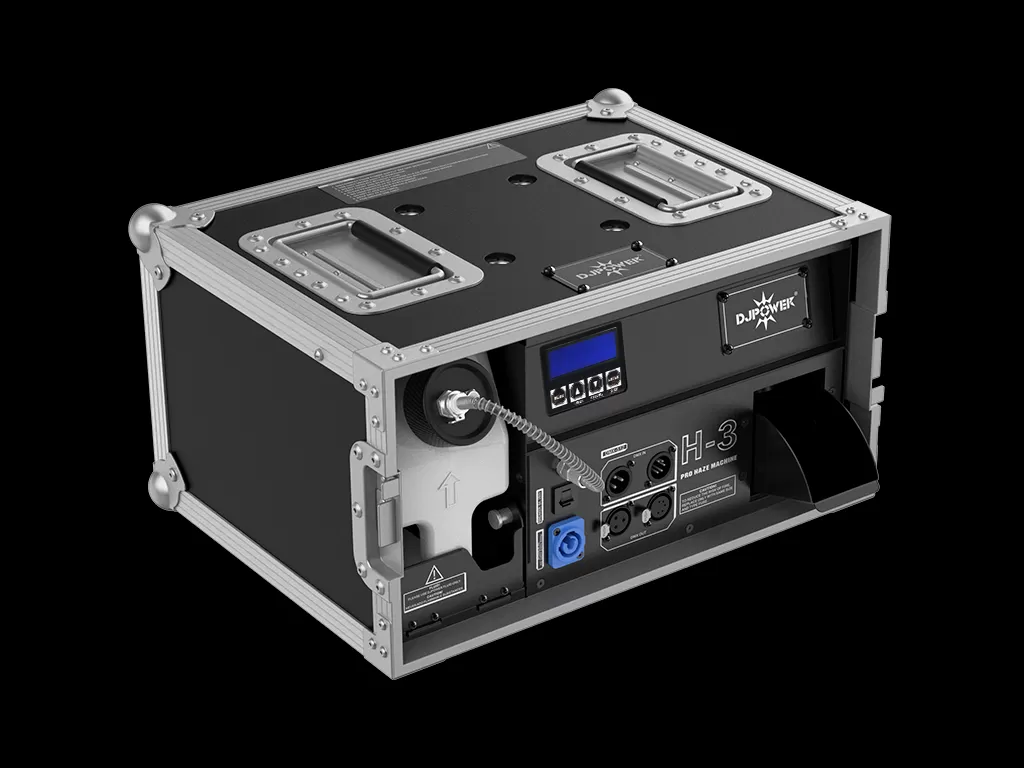

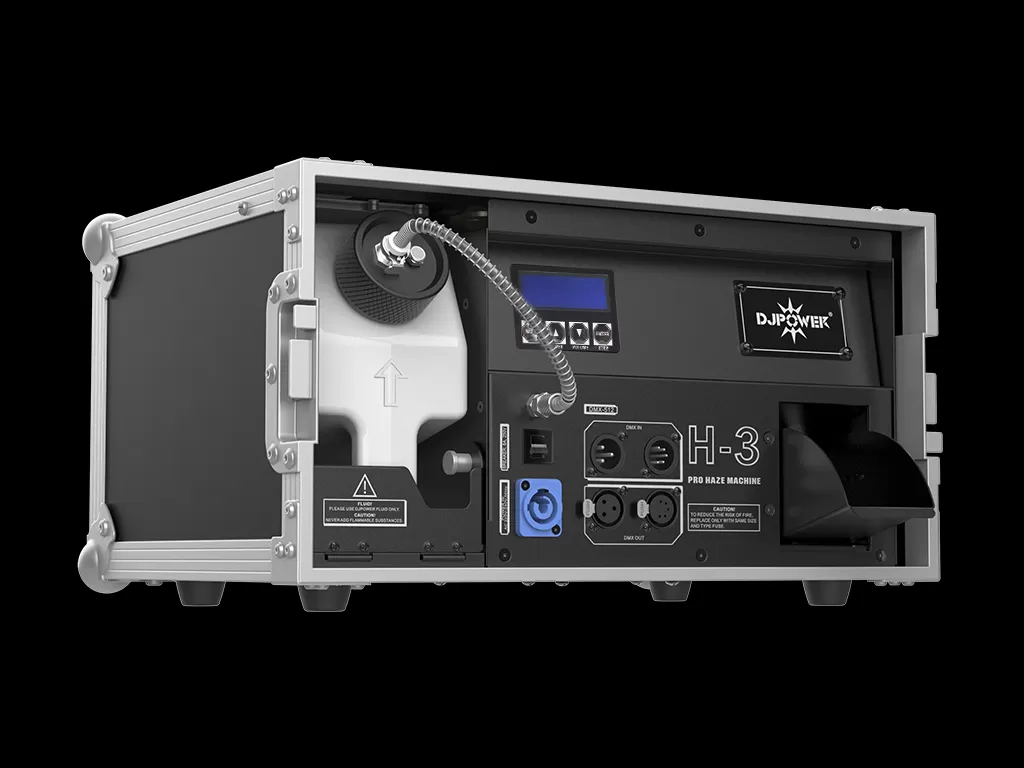

H-3 is a top of the range water-based haze machine designed for the highly demanding professional market.  It comes pre-built-in aluminum alloy flight case and can be stacked one on another. Robust yet compact size and lightweight, its ability to produce exceptionally fine atmospheric haze in a short period of time while operating at low noise levels makes it an ideal choice for rental houses, high-end bars, small shows, theaters and more.

H-3 USER MANUAL INQUIRE NOW NEXT PRODUCT
H-3



Features

Continuous output even and light haze;

Output 1-100% precisely adjustable;

Independent variable haze and fan control;

Powerful fan with low noise;

Low fluid consumption;

New heating system only 50 seconds heat-up time;

Advanced No-Fluid protection;

Compact size, and convenient for transportation;

Aluminum alloy flight case;

Built-in Omega mounting hole;

Angle-adjustable haze outlet;

Anti-slip fluid tank;

Anti-leaking fluid system with quick-connect fittings;

Anti-loose power plug;

Built-in LCD control, 3-pin and 5-pin DMX control;

Water-based fluid, no burnt odor, no harm to the optic;

Please use DJPOWER professional haze fluid PRO-C or PRO-J.




Specifications
AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Breaker

Current Limiter Specifications: 8 A, 250 V

Total Power Consumption: 1,100 W

Operating Current: 4.8 A

Power Input Connector: Lockable PowerCon

HEATING

Heat Up Time: Appr. 50 s

Heater Type: Fast Coil Heater

CAPACITY

Fluid Tank Capacity: 0.92 Gal.

OUTPUT

Adjustable Volume: √

Volume Adjustment Level/Range: 1-100%

Max Output Volume: Appr. 12,000 cuft/min

Max Coverage: Appr. 225 ㎡（5 min）

Fluid Consumption @ full volume : Appr. 12.0 mL/min

Maximum Continuous Duration @ full volume: Unlimited

Continuous Output: √

Max Continuous Output Level: 100%

Fully-loaded Cumulative Output Duration @ full volume: Appr. 291 min

Consumable Type for Standard Output Test: PRO-C/PRO-J

FEATURES

Physical Thermostat: √

Electronic Thermo-Control: √

Adjustable Output: √

Adjustable Fan Speed: √

No-Fluid Protection: √

CONTROL

On-device Manual Control: LCD control board

Wireless Control: ×

Wired Control: ×

Control Protocol: DMX-512

DMX Channel Range: 2

Data Connectors: 3- and 5-pin XLR

ACCESSORY

Flight Case: √

Power Cord: √

Wireless Controller Model: ×

Wired Controller Model: ×

CONSUMABLE

Consumable: PRO-C or PRO-J Haze Fluid

WEIGHT & DIMENSIONS

Net Weight: 16 kg / 35.3 lb.

Gross Weight: 18 kg / 39.7 lb.

Machine Dimensions: 425 × 390 × 242 mm / 16.7 × 15.4 × 9.5 in.

Packing Dimensions: 515 × 475 × 330 mm / 20.3 × 18.7 × 13 in.
