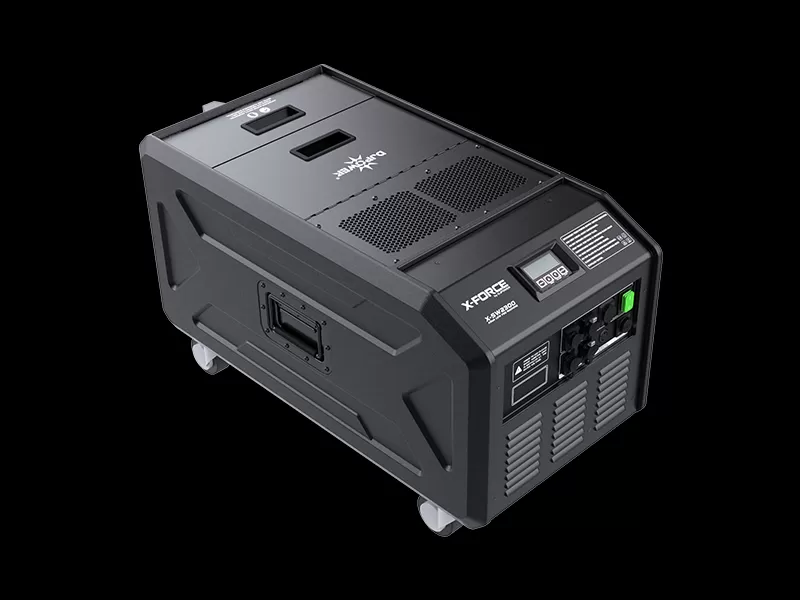

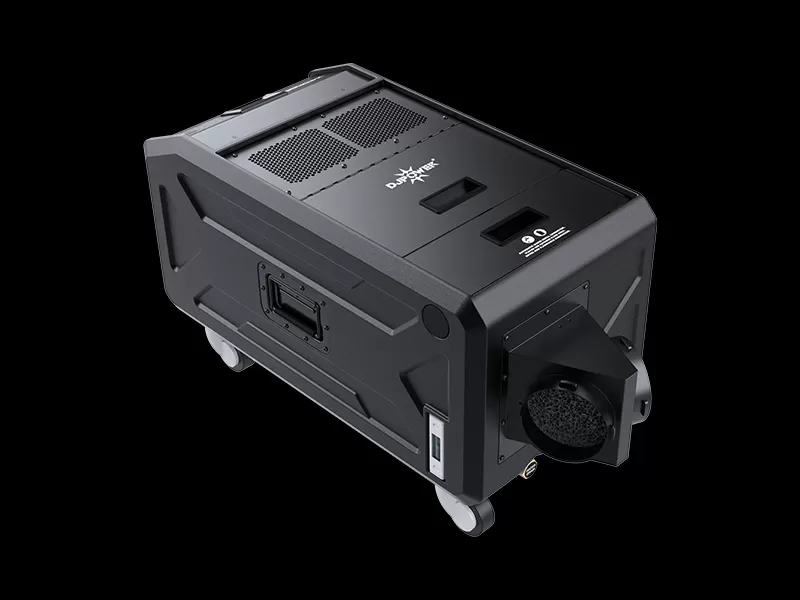

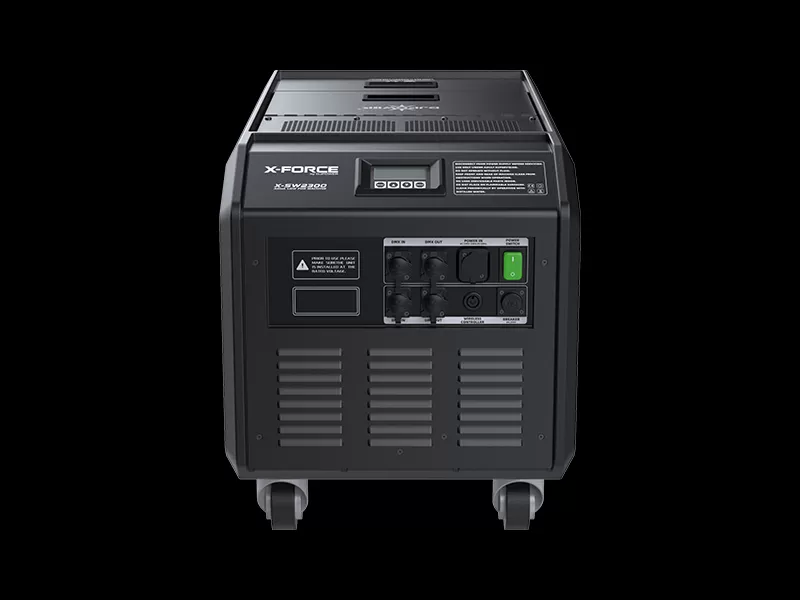

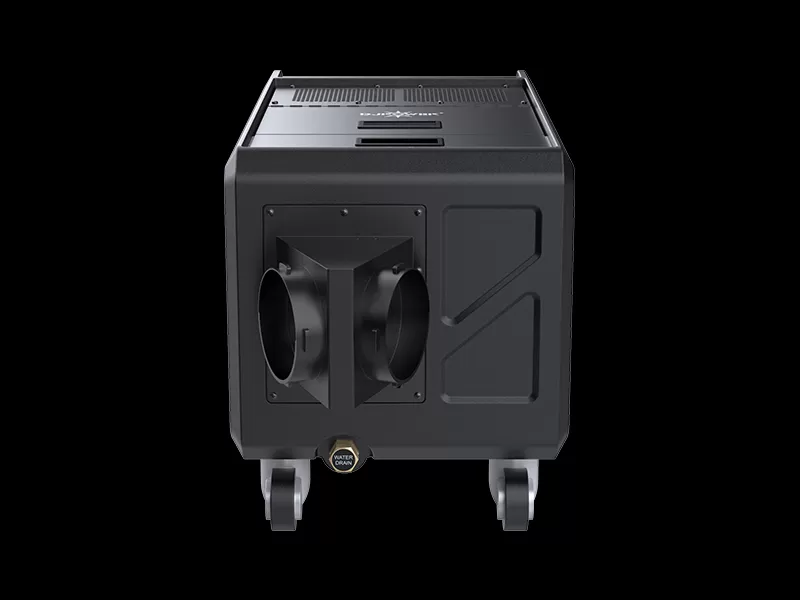

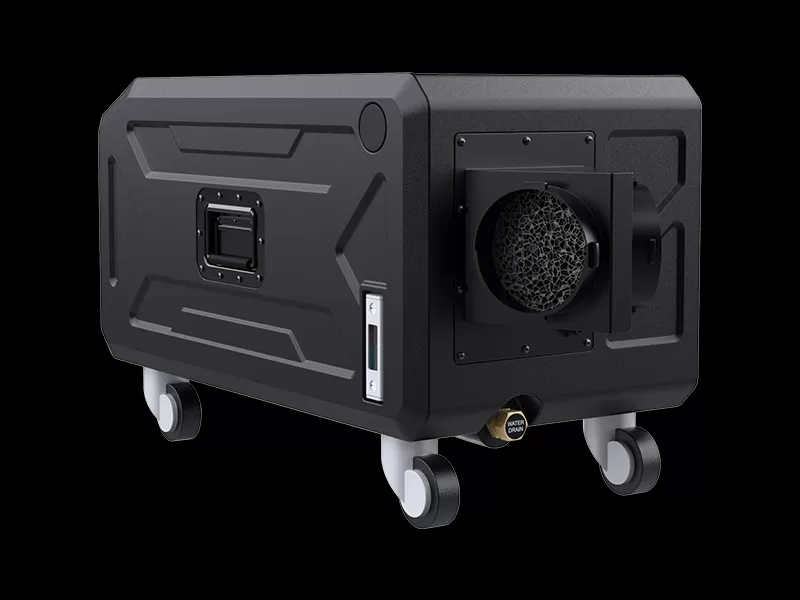

The X-SW2300 machine utilizes ultrasonic atomization technology, eliminating the need for dry ice while producing dense, low-lying fog. Its high-strength composite chassis combines compact dimensions with lightweight durability and corrosion resistance. Its auto-replenishing atomization chamber enables continuous operation, supported by water-level control system that ensures fog output stability. It is ideally suited for large-scale venues such as nightclubs, major stage productions, and product launch events.
Rainproof construction ensures safer all-weather operation;
Automatic water replenishment for auto-refilling, enabling continuous operation;
Integrated backup water tank ensures uninterrupted water supply to the atomization chamber;
The optimized airflow system extends smoke dispersion range while ensuring uniform coverage;
Adjustable output for precise environmental adaptation;
Advanced No-Fluid protection;
Advanced Low-Water Protection;
Built-in LCD control supported;
Upgraded Drain Port to prevent leaks.
Note: The actual effect may be affected by the operational conditions.
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 12 A, 250 V
Total Power Consumption: 2,200 W
Operating Current: 12 A
Power Input Connector: Lockable PowerCon IP65
Power Output Connector (Daisy Chained): Lockable PowerCon IP65
Heat Up Time: Appr. 3~5 min
Heater Type: Aluminum Heater Block
Fluid Tank Capacity: 3 L
Water Chamber Capacity : 28 L
Adjustable Volume: √
Volume Adjustment Level/Range: 1-100%
Max Output Volume: Appr. 15,000 cuft/min
Max Coverage: Appr. 300 ㎡
Fluid Consumption @ full volume: Appr. 34.4 min/L
Continuous Output: √
Max Continuous Output Level: 100%
Fully-loaded Cumulative Output Duration @ full volume: Appr. 100 min
IP Grade: IP53
Physical Thermostat: √
Electronic Thermo-Control: √
Adjustable Output: √
Adjustable Fan Speed: √
No-Fluid Protection: √
On-device Manual Control: LCD control board
Wireless Control: √
Control Protocol: DMX-512
DMX Channel Range: 3
Data Connectors: 3-pin and 5-pin XLR
Diversion Hose: 3.3 m, 125mm (5 inch)
Diversion Nozzle: 125mm (5 inch)
Flight Case: √
Power Cord: √
Wireless Controller Model: W-2
Consumable: PRO-SW/PRO-A and Water
Net Weight: 39.2 kg
Gross Weight: 43.5 kg
Machine Dimensions: 921× 395 × 472 mm
Packing Dimensions: 967 × 461 × 524 mm
