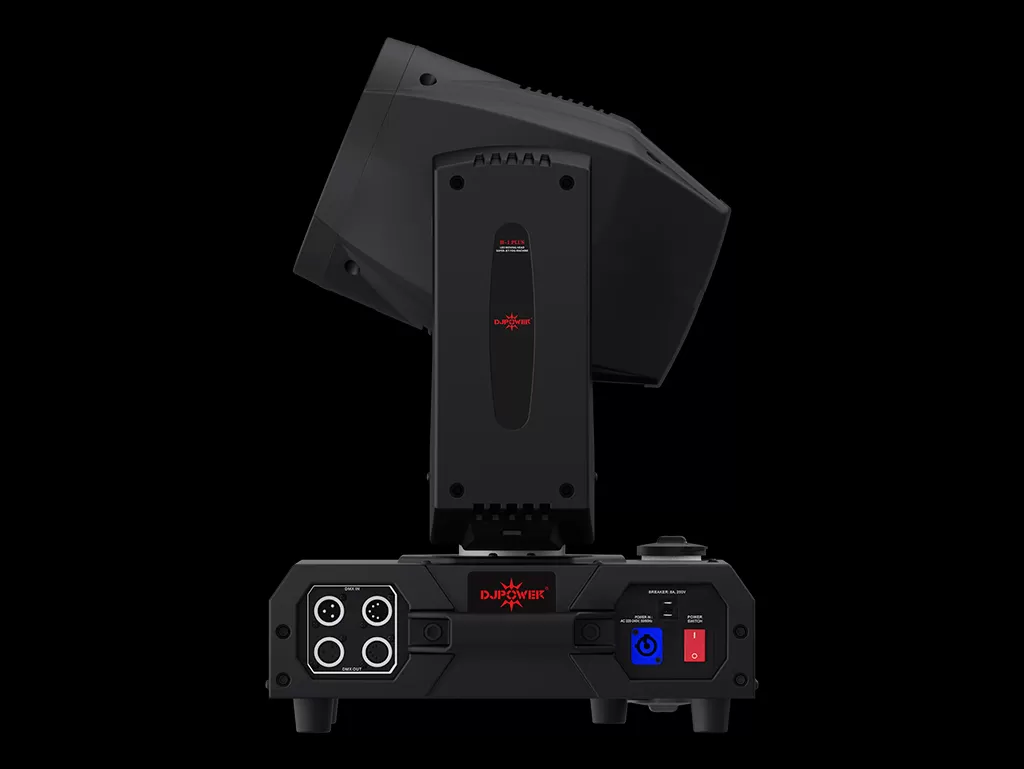

H-1 PLUS is an upgraded version of DJPOWER LED moving head fog machine. The patented technology of super jet, the response speed of smoke spray is faster. 24PCS 5W RGBA LED lights. At the same time, the size of heater is bigger. So that the fog output is stronger and the color is brighter. which can achieve 360°smoking effect. The moving head fog machine has the patented technology of super jet (patent number: ZL201520934500.2) and Immediate-Stop and Anti-Squirting Plus patented technology (patent number: ZL201320700998.7).
Super-jet function Longer output distance；
Immediate-Stop and Anti-Squirting Plus patented technology；
24PCS 5W RGBA LED lights；
The size of heater is bigger.o that the fog output is stronger and the color is brighter；
Upgraded structure, more safer and convenient；
Built-in LCD control, DMX512 control；
360° moving head rotation, hung or place on floor；
Please use DJPOWER professional fog fluid PRO-A or PRO-V.
In addition, the moving head smoke machine is equipped with a new and small controller box, which can be bought separately. The controller box enables the machine work automatically without DMX console! Such as when four machines daisy chained, the smoke jet machines can work the programs you choose from the control box automatically.
Note: The actual effect may be affected by the using environment.
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 8 A, 250 V
Total Power Consumption: 1,500 W
Power Input Connector: Lockable Power Con
Heat Up Time: Appr. 9.5 min
LED Power: 5W x 24pcs
LED Color: RGBA
Max Output Volume: Appr. 29,000 cuft/min
Max Output Distance: Appr. 6~8 m
Fluid Consumption @ full volume : Appr. 6.8 min/L
Maximum Continuous Duration @ full volume: Appr. 6s
Fluid Tank Capacity: 1.3L / 0.3Gal.
Consumable: PRO-A or PRO-V Fog Fluid
Physical Thermostat: √
Electronic Thermo-Control: √
Adjustable Output : √
No-Fluid Protection: √
Instant-Stop: √
On-device Manual Control: LCD Control Board
Wireless Control: ×
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 10
Data Connectors: 3-pin and 5-pin XLR
Power Cord: √
Wireless Controller Model: ×
Net Weight: 23.6 kg
Gross Weight: 27 kg
Machine Dimensions: 453 × 360.6 × 511.1 mm
Packing Dimensions: 545 × 467× 570 mm
H-1 PLUS is an upgraded version of DJPOWER LED moving head fog machine. The patented technology of super jet, the response speed of smoke spray is faster. 24PCS 5W RGBA LED lights. At the same time, the size of heater is bigger. So that the fog output is stronger and the color is brighter. which can achieve 360°smoking effect. The moving head fog machine has the patented technology of super jet (patent number: ZL201520934500.2) and Immediate-Stop and Anti-Squirting Plus patented technology (patent number: ZL201320700998.7).
The H-1 PLUS is built for professional live-production environments as a versatile LED moving head fog machine that pairs spectacular visual impact with low total cost of ownership. Quick-release modular components and a visible fluid window make routine maintenance fast and minimize downtime, while multiple fog-density presets and programmable timers let operators switch instantly from subtle atmosphere to dramatic jet bursts. Dual-control compatibility (DMX/RDM plus wireless remote), 360° mounting options and a high duty cycle mean faster rigging and more bookings for tours and rental fleets. Energy-efficient heating elements reduce running costs during long shows, and rugged construction ensures consistent performance night after night. Perfect for concerts, theatre productions, weddings and event hire, the H-1 PLUS delivers vivid, light-enhancing fog that elevates any lighting design — contact us for bulk pricing, rental packages, or tailored technical support.
