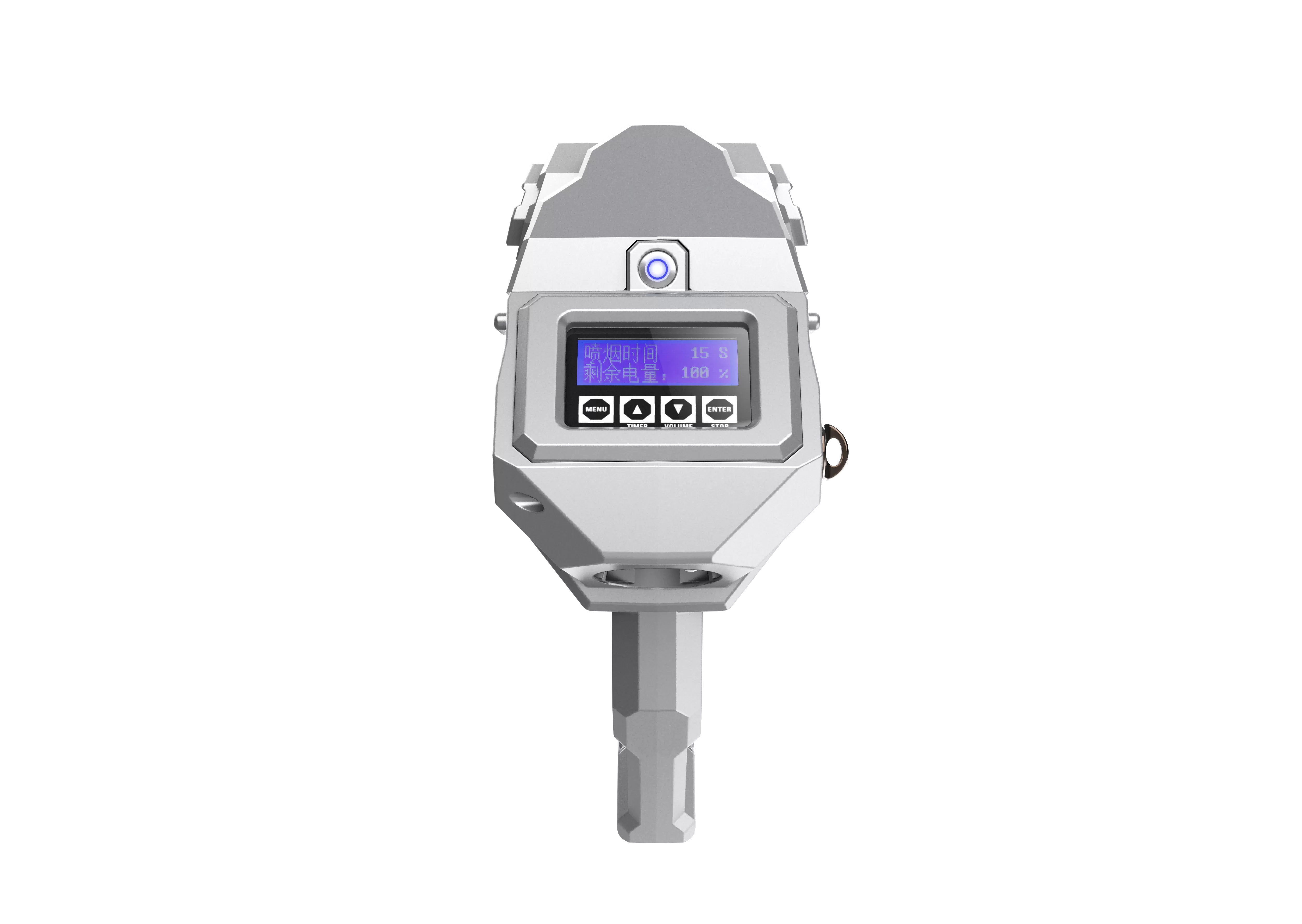

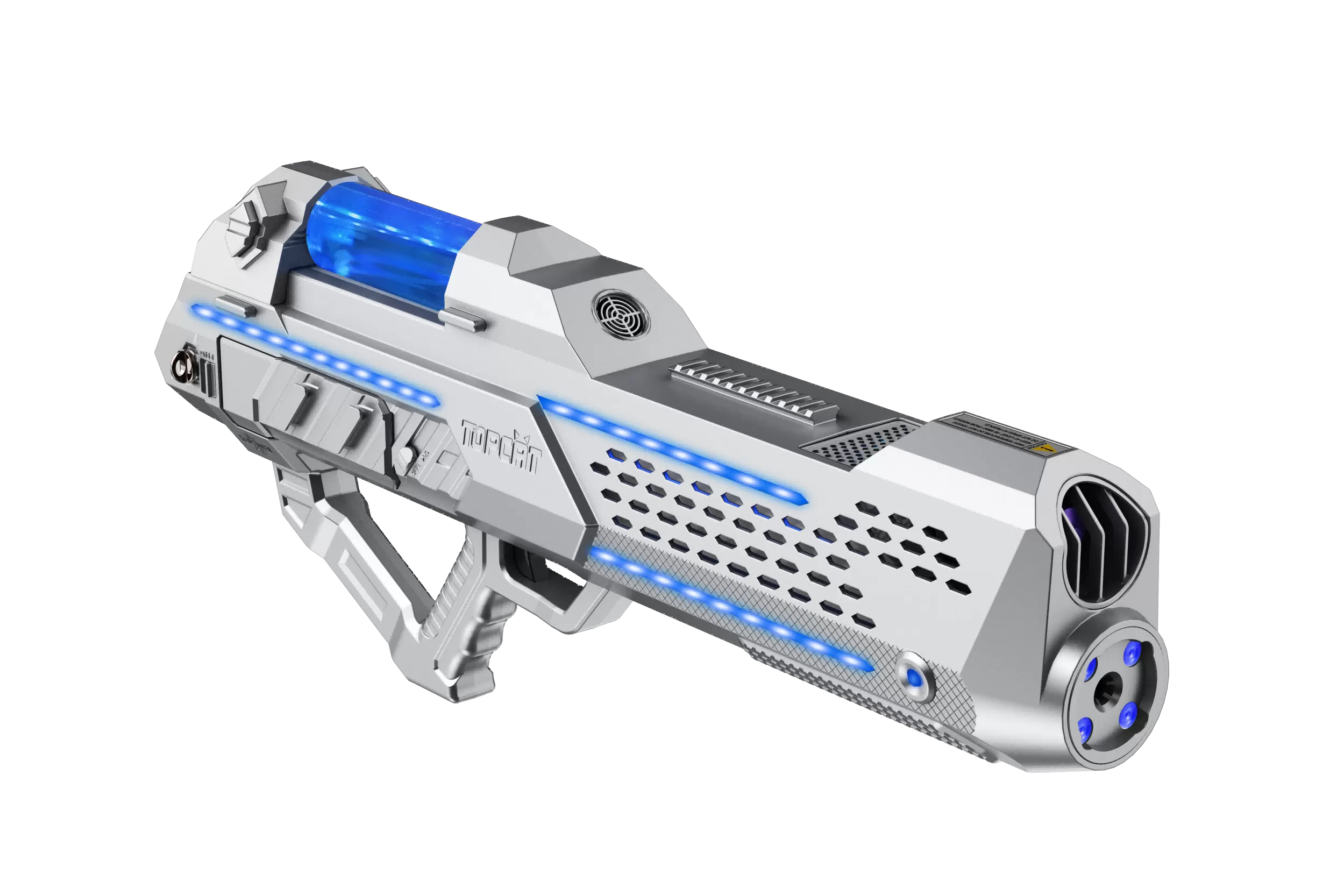

A-1S

THANOS FOG BLASTER

Traditional entertainment venues use CO2 blasters to create fog effects, but these require bulky steel  cylinders to be carried on the back, which is inconvenient and poses safety risks. A can of carbon dioxide  will run out of gas soon, and it needs to be transported to a professional gas factory to be refilled with  carbon dioxide, which is very inconvenient and costly. Our innovative product, the A-1S Fog Blaster, uses eco-friendly stage fog fluid as its raw material to  generate smoke effects. It is user-friendly, cost-effective, and rechargeable. During performances, it  operates without external pipes or power cables. Unlike traditional fog machines that spray slowly with limited range, the A-1S integrates a high-speed  airflow drive device, enabling rapid and long-distance fog projection. A-1S can spray strong wind without fog, allowing performers to spray strong wind toward the audience's  hair, enhancing interactive entertainment.

A-1S



Features

Designed with high-speed fan to help enhance fog output strength;

Continuous full burst up to 30s;

Specially designed bullet-shape fluid bottle, easy to replace or refill;

Coated with special insulation layer to avoid overheat;

Rechargeable battery design, cyclic charging, saves time and effort;

Quick-change function for the rechargeable battery.

Only 8×18650 lithium batteries are permitted (single-cell capacity ≥2500mAh, discharge rate ≥10C, capacity/brand/condition (new or used) must be consistent).




Specifications
AC POWER

Input Voltage & Rate: AC 220-240 V, 50/60 Hz

Current Limiter Type: Breaker

Current Limiter Specifications: 6 A, 250 V

Total Power Consumption: 1,200 W


HEATING

Heat Up Time: Appr. 7 min

LIGHT SOURCE

LED Color: Nozzle LED: RGB   Blaster Body LED: RGBW

LED Type: Nozzle LED: Three in one  Blaster Body LED:Four in one

Power per LED: Nozzle LED: 9W   Blaster Body LED:0.5W

Total LED Power: Nozzle LED:36 W  Blaster Body LED:33 W

CAPACITY

Fluid Tank Capacity: 330 mL

OUTPUT

Adjustable Volume: ×

Fluid Consumption Rate:Appr. 20 min/L

Max Output Volume: Appr. 18,000 cuft/min

Max Output Distance: Appr. 8 m

Max Continuous Output Duration: Appr. 30 s

FEATURES

Horizontal: √

Inclined: ×

Sidelong: ×

Hang Upside Down: ×

Rigging & Trussing: √

CONTROL

On-device Manual Control : LCD control board

Wireless Control: ×

Wired Control: ×

DMX-512: ×

CONSUMABLE

Consumable:PRO-Q

WEIGHT & DIMENSIONS

Net Weight: 13.8 kg

Gross Weight: 19.8 kg

Gun Body Dimension: 752 × 302 × 121 mm

Bottom Base Dimension: 570 × 199 × 174 mm

Flight case Dimensions: 830 × 620 × 250 mm

Carton Dimension:910 × 710 × 295 mm
