H-IP20V

TOPCO2JET Ⅱ

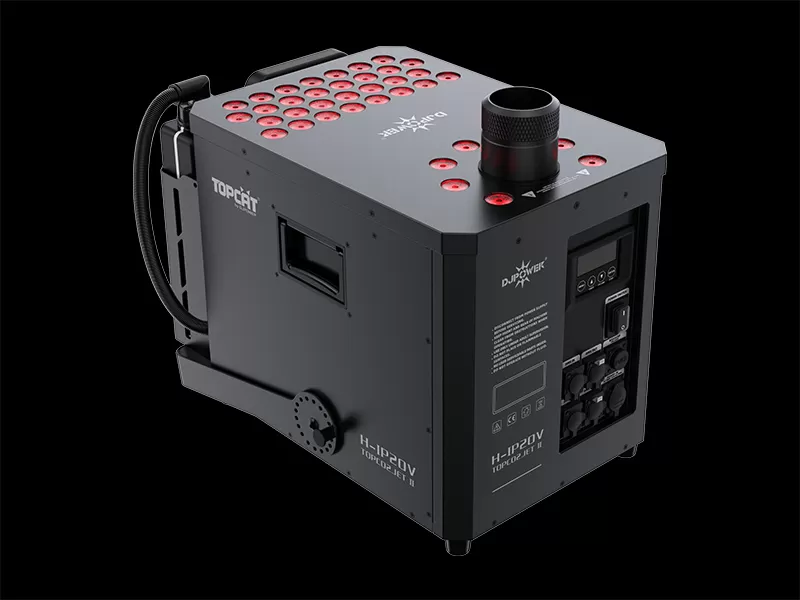

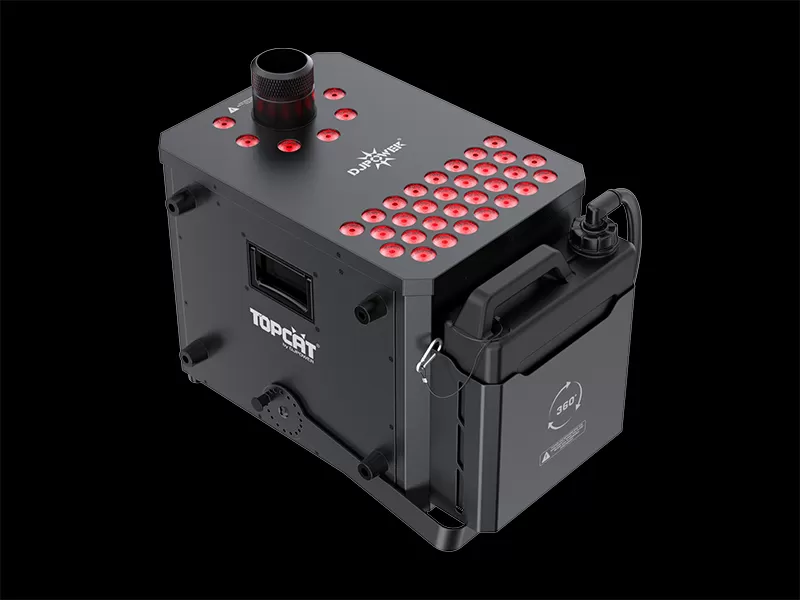

H-IP20V is a new dual-nozzle super jet fog machine launched by DJPOWER. lt can achieve rapid air column effects without the need of CO2 cylinders. IP53 rainproof when placed upright only; not rainproof when placed sideways or upside down. High-speed airflow assist technology enhances fog spray speed. The dual-nozzle design can spray up to 15-meterhigh air column with majestic effects! it has 37pcs of 8W LEDs, producing strong and colorful air columns. The machine has independent R&D high-speed airflow assist patent (No: ZL202023001465.9), Super-jet patent (No: ZL201520934500.2), Immediate-stop patent (No:ZL201320700998.7). lt's suitable for large-scale performances, bars, cultural tourism projects etc.

H-IP20V USER MANUAL

INQUIRE NOW

Features

IP53 rainproof when placed upright only; not rainproof when placed sideways or upside down.

High-speed airflow assist technology, rapid eruptions and quick dissipation；Dual-Nozzle design, majestic fog columns;

Super jet and immediate stop functions and fog reaction freely;

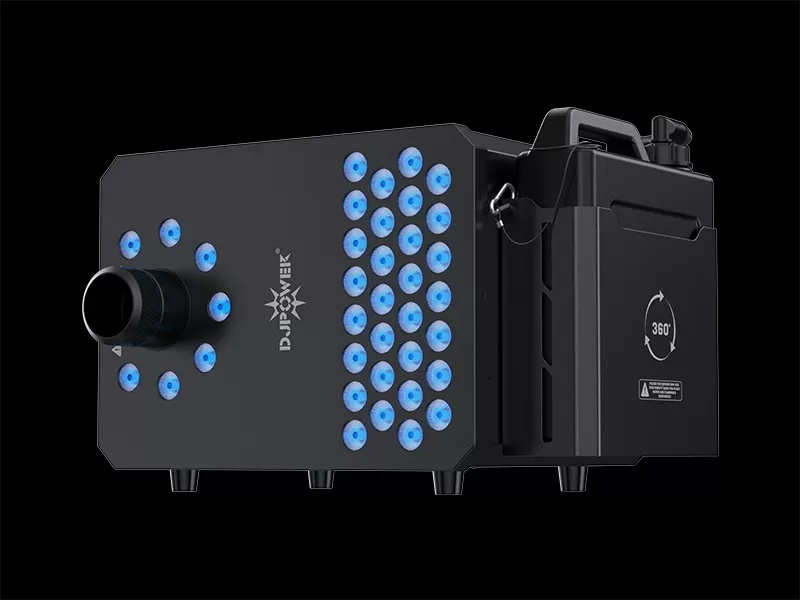

37pcs of 8W LEDs, stronger air columns;

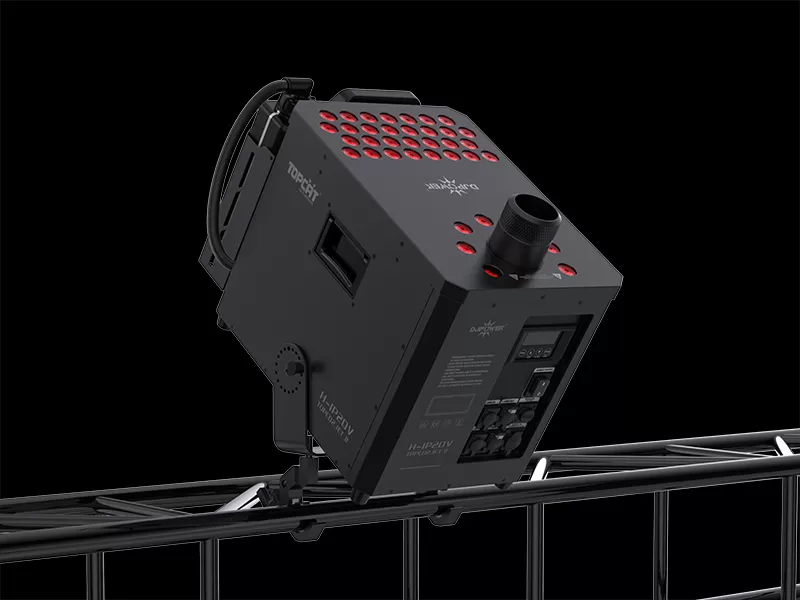

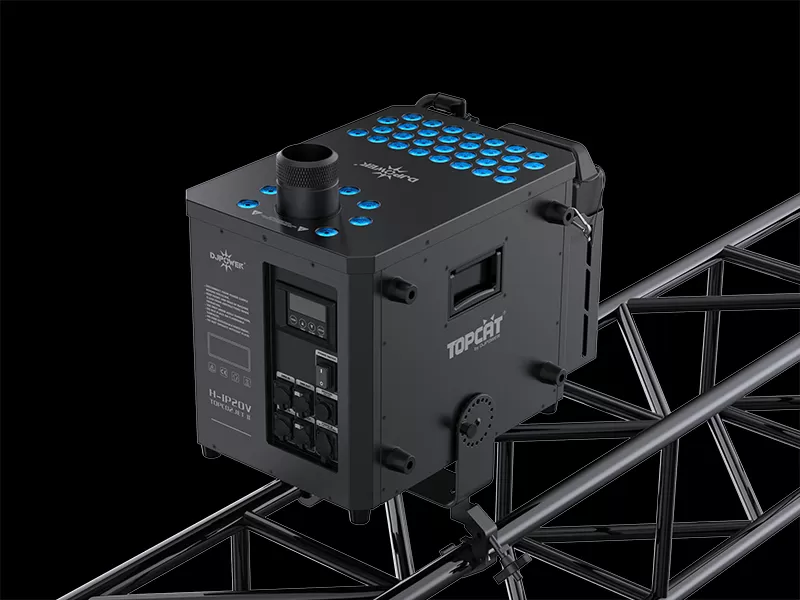

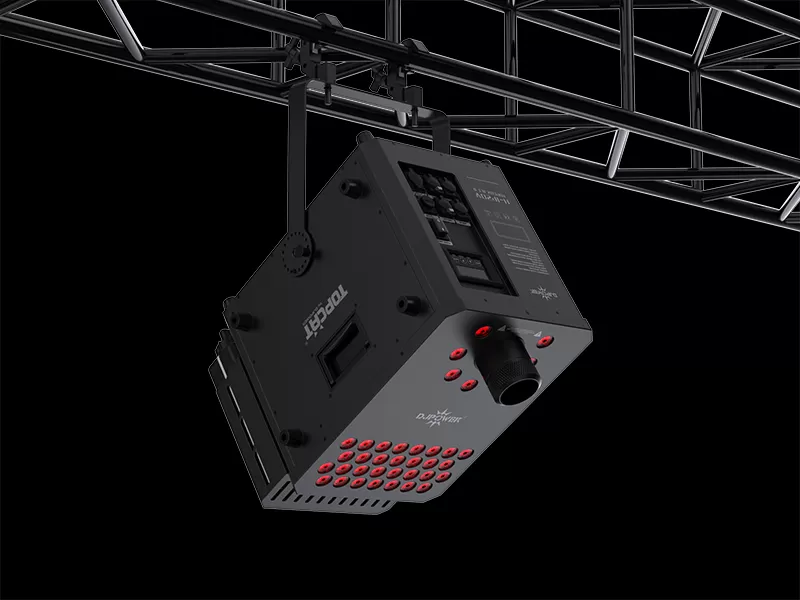

Supports side-way, upside down installation and multi-angle spraying;

Please use DJPOWER professional High Density Nano Fog Fluid PRO-20V. lt has high density which produces pure, white and dense fog. The nano fog particles can dissipate faster. The effect is more outstanding when used with H-IP20V.

Note: The actual effect may be affected by the user environment.

Specifications

AC POWER

Input Voltage & Rate：AC 220-240 V, 50/60 Hz

Total Power Consumption：3,100 W

HEATING

Heat-up time：Appr. 6 min

LIGHT SOURCE

37pcs x 8W RGB/Amber

OUTPUT

Max Output Volume: Appr. 117,000 cuft/min

Max Output Height: Appr. 15 m

Fluid Consumption @ full volume : Appr. 1.8 min/L

Maximum Continuous Duration @ full volume: Appr.10 s

Fully-loaded Cumulative Output Duration @ full volume: Appr. 9 min

IP DEGREE

IP Degree: IP53 (when placed upright only)

CAPACITY

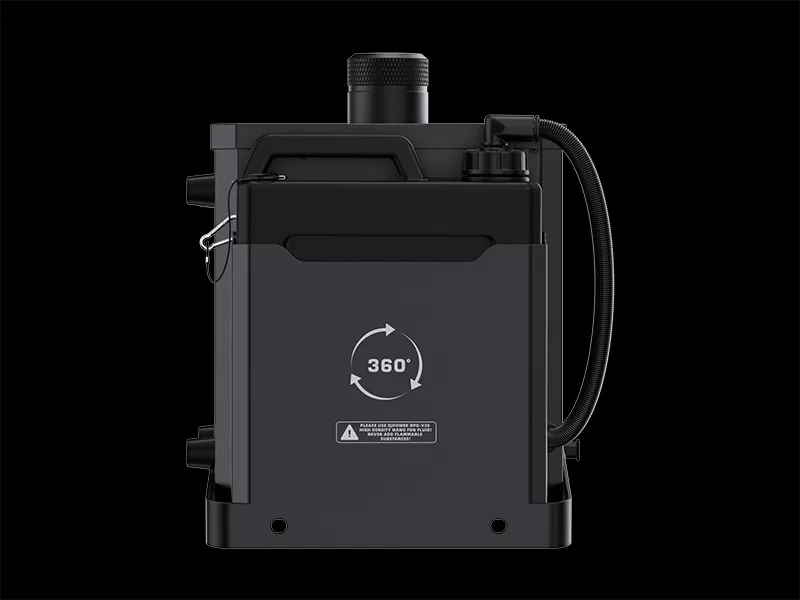

Fluid Tank Capacity: 5 L

CONSUMABLE

Consumable: PRO-20V

CONTROL

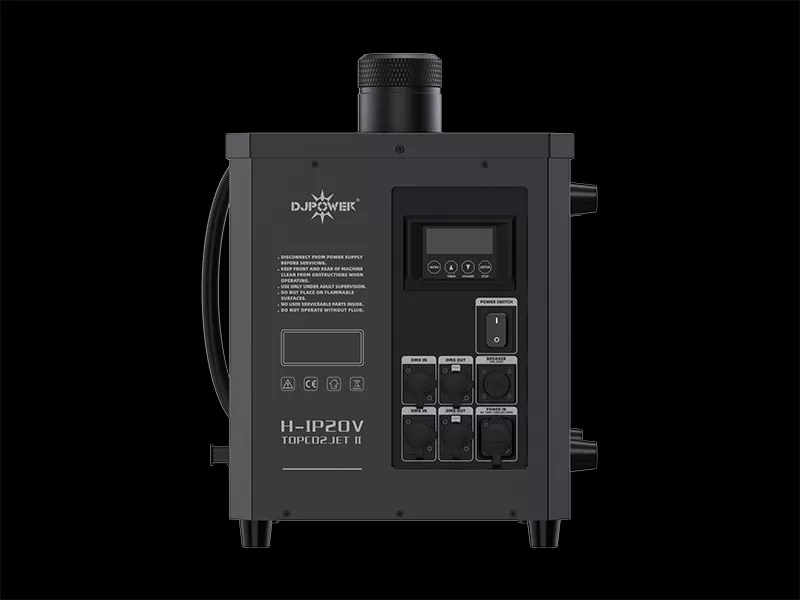

On-device Manual Control : LCD Control Board

Control Protocol: DMX512

DMX Channel Range: 15 or 16

WEIGHT & DIMENSIONS

Net Weight: 33.5 kg

Gross Weight: 37.9 kg

Machine Dimensions: 525.7 × 328.2 × 439.7 mm

Packing Dimensions: 660 × 446 × 513 mm

Related Consumables

PRO-20V HIGH DENSITY NANO FOG FLUID
