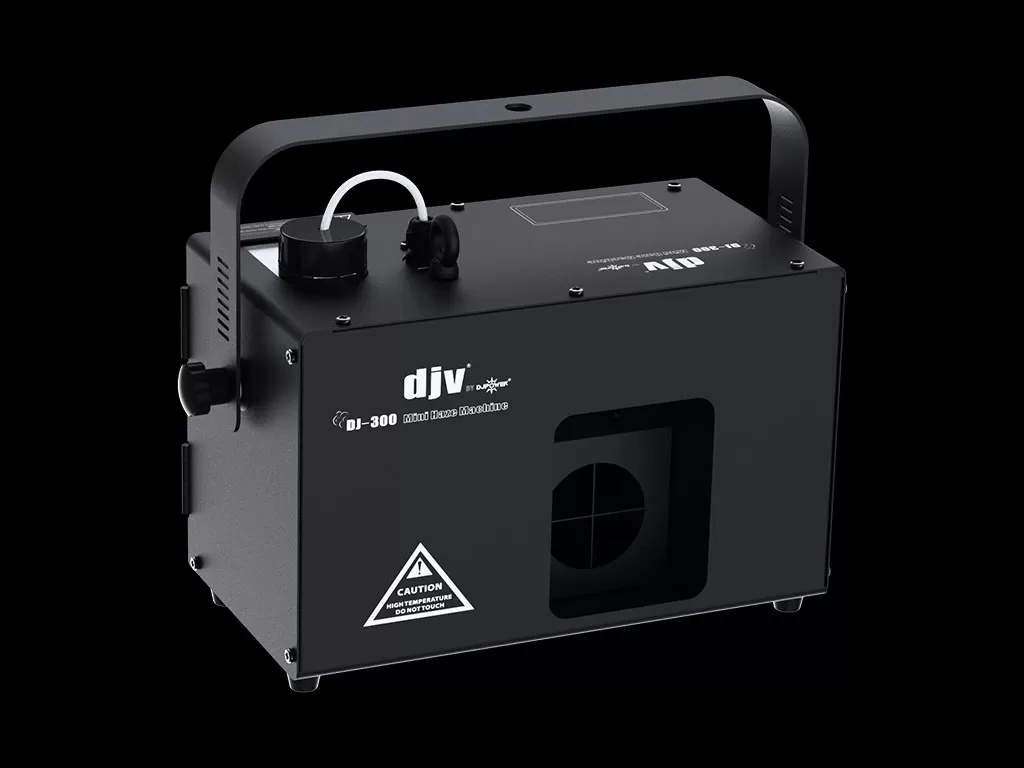

DJ-300

MINI HAZE MACHINE

DJ-300 is a super mini haze machine which is designed for KTV or parties specially, even with DMX function, low fluid consumption. Extremely compact size, 1.5-liter fluid tank is special designed and purposely matched to this unit, which can be replaced by new bottle directly if need. Easy-to-use, one knob controls the fog output. Furthermore, the optional wired and wireless controller can satisfy different user's need.

DJ-300



Features

Even and thin haze effect;

New and fast heater, almost free from clogging;

Low noise and environmental protection;

1.5 liter fluid tank - 8.2 hours on full output;

Extremely compact size and light weight;

Water-based fluid, no burnt odor, no harm to the optic;

Built-in digital display control, manual control, wired control, wireless control, and DMX control;

Please use DJPOWER professional haze fluid DJV-002.




Specifications
AC POWER

Input Voltage & Rate: 220-240 V, 50/60 Hz

Current Limiter Type: Fuse (F)

Current Limiter Specifications: 3 A, 250 V

Total Power Consumption: 230 W

Operating Current: 1.0 A

Power Input Connector: Hard-wired

HEATING

Heat Up Time: Appr. 2 min 30 s

Heater Type: Fast Coil Heater


CAPACITY

Fluid Tank Capacity : 1.5 L

OUTPUT

Adjustable Volume: √

Volume Adjustment Level/Range: 1-3

Max Output Volume: Appr. 3,000 cuft/min

Fluid Consumption @ full volume : Appr. 333 min/L

Maximum Continuous Duration @ full volume: Unlimited

Continuous Output : √

Max Continuous Output Level: 100%

Fully-loaded Cumulative Output Duration @ full volume: Appr. 499 min

Consumable Type for Standard Output Test: DJV-002


FEATURES

Physical Thermostat: √

Electronic Thermo-Control: √

Adjustable Output : √

Adjustable Fan Speed: ×

No-Fluid Protection: ×


CONTROL

On-device Manual Control : 7-seg digital display & Knob(s)

Wireless Control: Optional W-2 / RF 315MHz / External receiver

Wired Control: Optional M-1

Control Protocol: DMX-512

DMX Channel Range: 1

Data Connectors: 3-pin XLR


ACCESSORY

Power Cord: √

Wireless Controller Model: Optional W-2 / RF 315MHz / Transmitter & Receiver

Wired Controller Model: Optional M-1

CONSUMABLE

Consumable: DJV-002 Haze Fluid

WEIGHT & DIMENSIONS

Net Weight: 4 kg

Gross Weight: 4.5 kg

Machine Dimensions: 336 × 150 × 253 mm

Packing Dimensions: 355 × 255 × 275 mm
